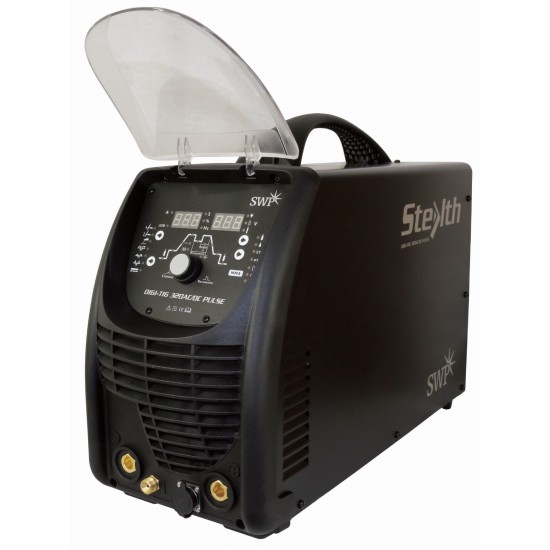

STEALTH Digi-Tig 320AC/DC Pulse Three Phase

The 9012H SWP Stealth Digi-Tig 320AC/DC Pulse Three Phase is a high-performance welding solution designed for professional workshops and industrial use across Ireland. With its AC/DC pulse capabilities, this welder can handle aluminium, stainless steel, and all forms of steel with precision. Featuring a full digital control panel, adjustable pulse frequency (0.5–200Hz), multi AC waveforms, and 2T–4T trigger function, this TIG/MMA welder ensures clean, stable, and efficient welds every time. It comes complete with a 3m Argon hose and Amphenol plug, with optional ready-to-weld packages in air-cooled or water-cooled configurations.

The air-cooled TIG package (Part No. 9827H) includes a WP26-12SZ torch, WP18AK accessory kit, TIG adaptor, and 3m earth lead, ideal for up to 200A DC and 150A AC welding. The water-cooled TIG package (Part Nos. 9828H/9819H/9824H) adds a STEALTH 5L water cooling unit, trolley, WP18-12SZ torch, accessory kit, quick disconnect adaptor kit, and earth lead. The water-cooled torch can exceed the standard machine amperage for heavy-duty tasks. Backed by a 5-year warranty, this welder is built for reliability, precision, and industrial-grade performance. Contact us at 091-846646 for pricing on trolleys, foot pedals, and additional accessories.

Key Features

1. Full digital control panel for precise welding adjustments

2. 2T–4T trigger function with adjustable pulse frequency 0.5–200Hz

3. Multi AC waveform options for aluminium and steel welding

4. Fitted with power off-take for optional water cooler

5. TIG and MMA welding with included 3m Argon hose and Amphenol plug

Specifications

1. Input Voltage: Three-phase 400V ±15%

2. Output Range: 10–320A

3. Duty Cycle: 60% @ 320A, 100% @ 250A

4. No Load Voltage: 61V, Arc Start: HF

5. Dimensions: 570 x 240 x 385 mm | Weight: 25kg

Uses & Benefits

1. Aluminium TIG welding for professional fabrication

2. Stainless steel and mild steel workshop applications

3. Automotive repair, restoration, and maintenance projects

4. Industrial metal fabrication and structural welding

5. Flexible ready-to-weld packages for air or water cooling

Ready-to-Weld Packages:

Air-Cooled Package – Part No. 9827H

• WP26-12SZ Torch

• WP18AK Accessory Kit

• TIG Adaptor D3595-1-1

• EC32LD Earth Lead 3 mtr

• Max Operating Amps: 200A DC / 150A AC

Water-Cooled Package – Part Nos. 9828H / 9819H / 9824H

• STEALTH 5L Water Cooling Unit

• Machine Trolley

• WP18-12SZ Torch

• WP18AK Accessory Kit

• TIG Adaptor D3595-1-1

• Quick Disconnect Adaptor Kit

• EC32LD Earth Lead 3 mtr

• Exceeds max machine amperage
