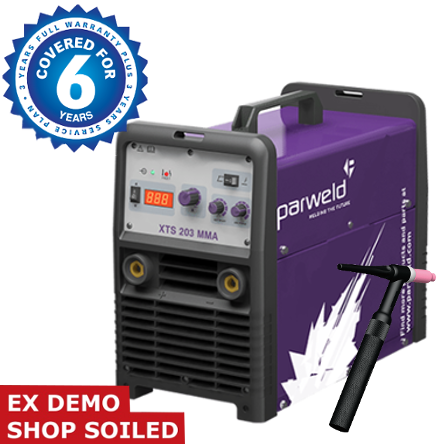

*Shop Soiled* XTS203 MMA INVERTER

Shop Soiled – Ex Demo
Tig Torch and ARC Leads included.
XTS 203 MMA INVERTER
DC Output The XTS 203 MMA has DC output and when combined with the correct type of electrode is suitable for welding alloy, non alloy steels, stainless steel and cast iron. Electrodes up to 6.0mm can be used with ease.
TIG Welding By fitting the optional TIG torch and coupling to a suitable gas supply, the XTS 203 MMA can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.
Generator Friendly The XTS 203 MMA is able to cope with inputs which fluctuate by +/- 15% and can be used with the majority of generators. The machine is housed in a rugged steel case.
Professional MMA Inverter, suitable for Industrial Manufacturing, Metal Fabrication, Maintenance Repair
ADDITIONAL INFORMATION
KEY FEATURES • 400V Three Phase Input • 200A @60% Duty Cycle • Connections 35-50mm Dinse • Generator Friendly • Easy electrode striking with arc force • Easy electrode re-striking with hot start • DC output • Lift arc TIG • 88V OCV with VRD • 6 years return to base warranty • Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
OUTPUT CURRENT 10-250A
INPUT VOLTAGE 400V 3P
INPUT CURRENT (MAX) 16A
DUTY CYCLE 200A @ 60%
FUSE RATING 16A
KVA 11
NO LOAD VOLTAGE 88V
MAXIMUM ELECTRODE SIZE 6.0mm
CABLE CONNECTION 35-50 Dix
ENCLOSURE PROTECTION IP23S
DIMENSIONS (MM) 490 x 250 x 400
WEIGHT (KG) 18.5
TECHNOLOGY MMA, TIG
