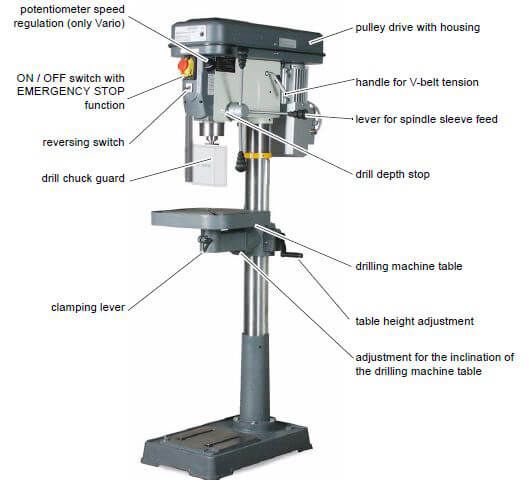

Quantum B16 Bench Drill (450w/230v)

Guaranteed concentricity precision less than 0.03 mm measured in the drilling spindle sleeve
Spindle with precision ball bearings
Quantum high-grade quick-action drill chuck with concentricity precision less than 0.09 mm supplied as standard (from B 14 onwards)
Smoother running due to aluminum pulleys with ground six-tooth dog (from B 14 onwards)
Better power transmission due to the quality driving V-belt
Long, ergonomically designed lever arm handles with softgrip for nonskid working
Drill depth stop
Precision-ground work table with transversally running T-slots, swivelling from -45° to +45° with 360° rotatability
Solid, heavy duty base plate with T-slots, heavily ribbed at the backside
T-slots for holding a vice supplied as standard (from B 14 onwards)
400 Volt models additional with right-left-hand rotation
Powerful, smooth-running electric motors (from B 14 onwards)
Proven quality

Model
quantum B 16
Item no.
300 8161
Technical data

Drilling capacity in steel (max.)
16 mm
Working range
125 mm
Distance spindle / table (max.)
390 mm
Spindle holding fixture
MT 2
Spindle speeds
660 – 2500 rpm
Number of steps
5 steps
Sleeve travel
65 mm
Upright diameter
60 mm
Table size (L x W)
200 x 200 mm
T-slot size
14 mm
Drilling table swivel
+ / – 45°
Motor power 50 hz
450 W
Dimensions (L x W x H)
510 x 270 x 820 mm
Net weight
38 kg
