Magnetic Drills

A durable, heavy duty 2 morse taper drilling machine
Features/Benefits:
23mm Twist Drill Capacity
12-50mm Core Drilling
Heavy duty 1150 watt motor – enables larger cutting capacity.
Weighs only 13kg with a 50mm cutter capacity – unrivalled weight to cutting capacity ratio
150mm total drill travel – facility to use extra long cutters.
Maintenance friendly twin slide rails – no wearing parts and adj

EDX EM12 Low Profile Mag Drill

Versatile, accurate and portable with a high quality performance. Featuring strong magnetic adhesion (1500kg f), gravity oil feed and a powerful 1200W motor this magnetic drill revels in heavy-duty site work and steel fabrication tasks. The cuts are precise and clean due to an optimised rotation speed (550rpm), and all popular broaching capacities are covered (12-42mm).
Kit includes:
Oil Tank
Quic

A durable, heavy duty 4 Morse Taper Powerhouse designed for many holemaking applications
Features & Benefits
Heavy duty 2300 watt, variable speed motor – enables larger cutting capacity.
Weighs only 35kg –  a one man job to position and operate machine
140mm cutter capacity – unrivalled weight to cutting capacity ratio.
300mm total drill travel – facility for extra long cutting depth and stroke
Ma

The LP45 is JEI’s latest low profile machine, specifically designed to fit in height restricted areas.
Compact design – only 180mm high
Big capacity – will handle up to 45mm diameter holes through 50mm plate.
Convenient ratchet handle can be used in either a left or right hand position.
Maintenance free – no adjustable slides, no exposed motor cord.
Positive quill assembly.
Ideal For:
Bridge maint

MagBeast 4 – A powerful 4 morse taper, heavy duty magnetic drill.
Features/Benefits:
Powerful 1800 watt motor.
Motor soft start.
Overload protection with L.E.D indicator.
Integrated gearbox housing with slide.
Semi-automatic gib backlash adjustment.
Magnetic Power Adhesion Control (MPAC).
Magnetic Field Shape Control (MFSC).
4 speed gearbox.
Service friendly.
Specification
Model Mag Beast 4 Spindl

Specification:
Model HM100S (Swivel) Spindle MT3 Weight 21kg Max. Stroke 280mm Cutter Capacity 100mm Ø x 6″ depth of cut Tapping Capacity
n/a Twist Drill Capacity 19mm with 3MT chuck 32mm with 3MT twist drill Countersink Capacity 55mm
RPM 4 fixed speeds: 110 175 245 385 Height 480mm Length 360mm Width 130mm Magnet Base Swivel 360 degrees Magnetic Base Dimensions 102mm x 212mm Magnet Deadlift (on 2

Lightweight and powerful for maximum performance.
Powerful 1100 watt motor delivering 40mm cutting capacity.
Easily adapts for a 13mm chuck for use on twist drill applications.
External coolant system for extended tool life.
Model MagBeast HM40 Spindle 19mm Weight 12.7kg Cutter Capacity 40mm Ø x2″ depth of cut Twist Drill Capacity 13mm with optional attachment Countersink Capacity 30mm Motor 1100

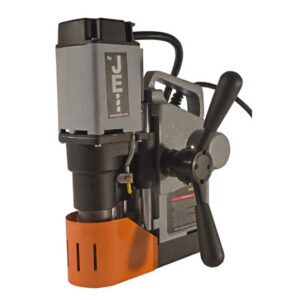

MINIBEAST – Compact and powerful, ideal for site or workshop use.
Features/Benefits:
12mm Twist Drill Capacity
12-35mm Core Drilling
Compact size and weight – ideal for site work.
Internal coolant reservoir – ensuring maximum cutter life.
Self correcting slide rails – for maintenance free operation.
Light-weight – only 10kg.
Hidden motor cable – for added protection.
Specification
Model MINIBEAST

This new single speed Mag drill with a tough gear box and a powerful 1Kw Marathon motor is able to cut up to Ø 32mm using HSS or TC core cutters and 13mm with a spiral drill. A redesigned electronic box and magnet makes the Mag 32 nearly 20% lighter than its predecessor making it one of the lightest Mag drills on the market, other new features include additional carry handle with thread for eye bo

Up to 70 holes per battery charge
Magnetic holding force: 10,000 N
Power consumption: 1500 W
Voltage: 37 V / 7.6 Ah Li
Idling speed: 510 rpm
Mounting: Weldon shaft 19,0 mm (3/4 “)
Weight: approx. 15 kg
Length: 297.0 mm
Width: 170,0 mm (including handle star)
Height: 460.0 mm
Stroke: 230.0 mm
Magnet (Lx WxH): 160.0 x 80.0 x 42.0 mm
Charging time Battery: 60 min.
Drilling diameter Core drill: up to
